Introduction

Boiler Parameters

Thermal capacity: 1.4-7 MW

Working pressure: 1-1.6 MPa

Outlet temperature: 115/70℃

Available fuel: Biomass molding granules, wood chip, corn cob, saw dust, palm shells, rice husk, etc.

Available industries: Heating, hotels, schools, hospitals

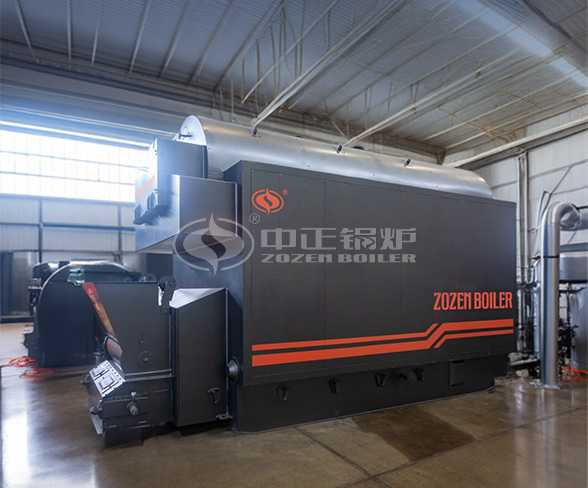

Boiler features

The DZL series quick-installed boiler is a horizontal three-pass water-fire tube chain grate boiler designed for biomass combustion. The boiler features a single drum layout with threaded smoke tubes for convective heating surface, and water-cooled walls on both sides of the drum for radiant heating surface. The combustion equipment adopts a lightweight chain grate, and the boiler is delivered in a complete quick-installed form. The electrical control system enables infinitely variable control of the grate, with alarm and interlock protection for critical parameters.

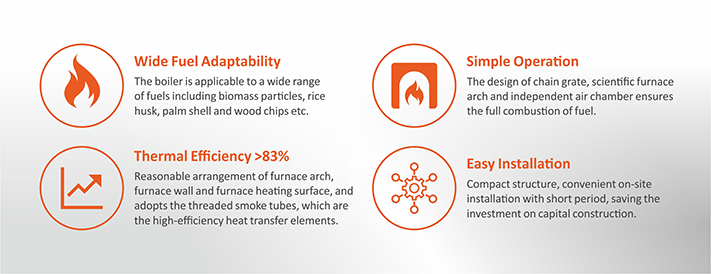

Boiler Advantages

Working Principal

Boiler Specification

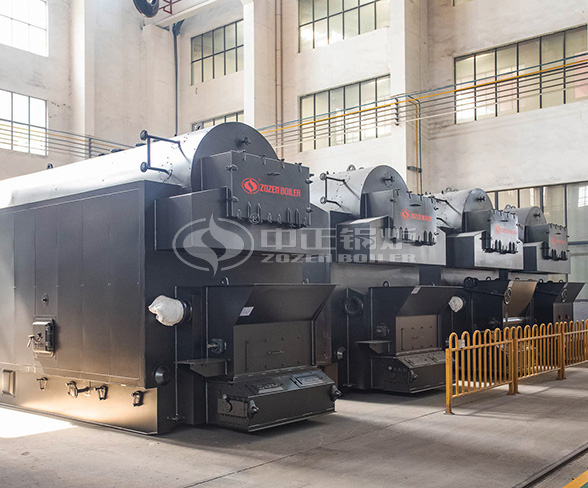

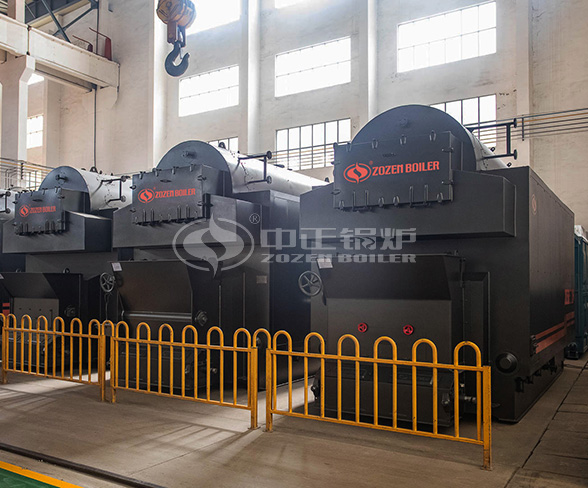

Workshop

Oversea market
