Introduction
Boiler Parameters
Thermal capacity: 15-40 t/h
Working pressure: 1.25 MPa / 1.6 MPa / 2.5 MPa
Outlet temperature: 194℃ / 204℃ / 225℃
Available fuel: Biomass pellets, rice husks, wood chips, palm shells, sawdust, etc.
Available industries: Heating, chemical, food, tobacco, textile, printing and dyeing, feed, pharmaceutical, building materials, brewing, rubber, hospitals.
Boiler features
DZL third-generation biomass boiler is a state-of-the-art product with proprietary intellectual property rights, stemming from in-house research and development. Featuring a three-tube water structure, its modular design is bifurcated into two primary sections: the upper section forming the heating surface and the lower part mainly housing the combustion apparatus. This design ensures optimal performance across various phases, including fuel combustion, heat exchange, and exhaust emissions.
Boiler Advantages

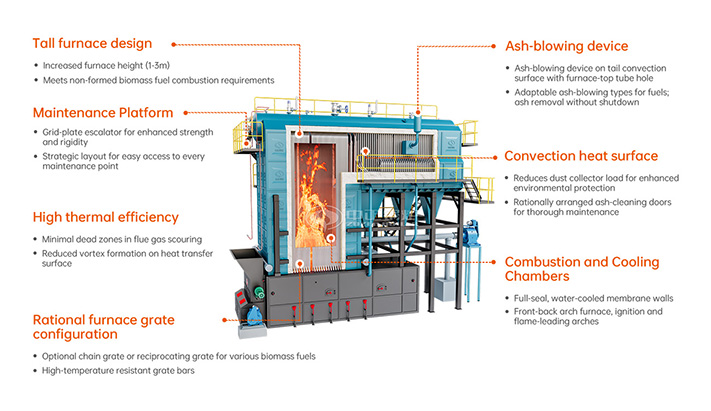

Working Principal
Boiler Specification
| Model | Steam Capacity | Steam Pressure | Steam Temperature | Shipping Dimension | Heat Efficiency |
| DZL15-1.25-SCIII | 15 t/h | 1.25 Mpa | 194 ºC | 10.10×3.15×3.60 8.50×3.42×3.00 (m) | >87.5% |
| DZL15-1.6-SCIII | 15 t/h | 1.6 Mpa | 204 ºC | 10.10×3.15×3.6 08.50×3.42×3.00(m) | >87.5% |
| DZL15-2.5-SCIII | 15 t/h | 2.5 Mpa | 225 ºC | 10.10×3.15×3.6 08.50×3.42×3.00 (m) | >87.5% |
| DZL20-1.25-SCIII | 20 t/h | 1.25 Mpa | 194 ºC | 10.70×3.90×3.60 9.30×3.81×3.00 (m) | >87.5% |
| DZL20-1.6-SCIII | 20 t/h | 1.6 Mpa | 204 ºC | 10.70×3.90×3.60 9.30×3.81×3.00 (m) | >87.5% |
| DZL20-2.5-SCIII | 20 t/h | 2.5 Mpa | 225 ºC | 10.70×3.90×3.60 9.30×3.81×3.00(m) | >87.5% |
| DZL25-1.25-SCIII | 25 t/h | 1.25 Mpa | 194 ºC | 10.70×3.90×3.60 9.30×3.81×3.00 (m) | >87.5% |
| DZL25-1.6-SCIII | 25 t/h | 1.6 Mpa | 204 ºC | 10.70×3.90×3.60 9.30×3.81×3.00(m) | >87.5% |
| DZL25-2.5-SCIII | 25 t/h | 2.5 Mpa | 225 ºC | 10.70×3.90×3.60 9.30×3.81×3.00(m) | >87.5% |
| DZL30-1.25-SCIII | 30 t/h | 1.25 Mpa | 194 ºC | 10.00×3.36×3.60(m) | >87.5% |
| DZL30-1.6-SCIII | 30 t/h | 1.6 Mpa | 204 ºC | 10.00×3.36×3.60 (m) | >87.5% |
| DZL30-2.5-SCIII | 30 t/h | 2.5 Mpa | 225 ºC | 10.00×3.36×3.60 (m) | >87.5% |
| DZL35-1.25-SCIII | 35 t/h | 1.25 Mpa | 194 ºC | 10.00×4.10×3.80 (m) | >87.5% |
| DZL35-1.6-SCIII | 35 t/h | 1.6 Mpa | 204 ºC | 10.00×4.10×3.80 (m) | >87.5% |
| DZL35-2.5-SCIII | 35 t/h | 2.5 Mpa | 225 ºC | 10.00×4.10×3.80 (m) | >87.5% |
| DZL40-1.25-SCIII | 40 t/h | 1.25 Mpa | 194 ºC | 10.00×4.44×4.30(m) | >87.5% |
| DZL40-1.6-SCIII | 40 t/h | 1.6 Mpa | 204 ºC | 10.00×4.44×4.30 (m) | >87.5% |
| DZL40-2.5-SCIII | 4 0t/h | 2.5 Mpa | 225 ºC | 10.00×4.44×4.30 (m) | >87.5% |

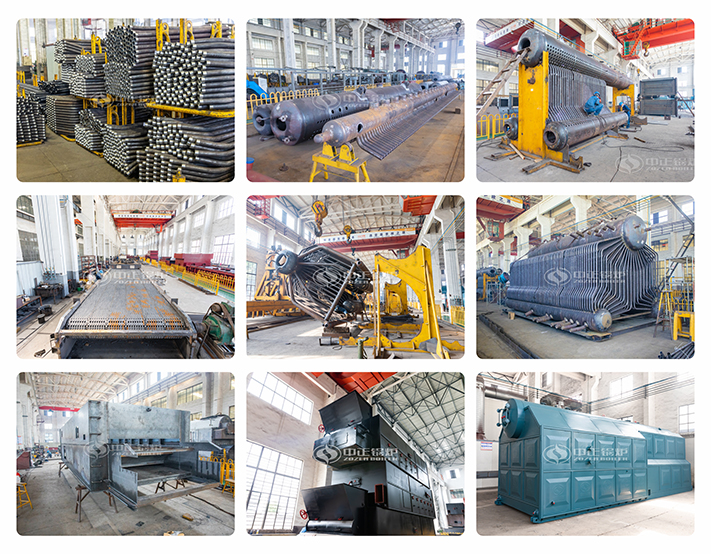

Workshop
Oversea market
