Part 1: Global Energy Transition and the Rise of Wood Pellets as Biomass Energy

As the world accelerates toward carbon neutrality targets, industries are actively seeking renewable energy solutions to replace fossil fuel-based heating systems. Among various clean energy options, wood pellets boiler technology has emerged as a leading choice for sustainable industrial steam and heat generation.

Wood pellets offer compelling advantages as a renewable energy source. First, they possess high energy density—compacted sawdust achieves uniform size and moisture content below 10%, delivering consistent calorific value. Second, wood pellets represent true renewable energy, participating in a closed carbon cycle. Third, modern wood pellets boilers achieve combustion high efficiency with advanced emission control systems, making them ideal for industries committed to ESG goals.

Part 2: Understanding Wood Pellets Boiler Working Principles

A wood pellets boiler operates through a precisely coordinated sequence of automated processes that maximize combustion efficiency while minimizing emissions. The operation begins with the automatic feeding system, where wood pellets stored in integrated hoppers are delivered to the combustion chamber via motorized screw feeders or pneumatic conveyors, with advanced fuel stirrers ensuring even material distribution and preventing bridging or backfire. Once inside the combustion chamber, the pellets fall onto moving grate systems where they undergo staged combustion; primary air enters from below the grate to initiate ignition, while secondary air injects above the fuel bed to ensure complete combustion and reduce unburned hydrocarbons. The heat generated from combustion is then transferred through water-cooled wall membranes that form the furnace radiation heat absorption surface, while convective heat transfer continues as high-temperature flue gases sweep across tube bundles, maximizing thermal absorption before exhaust. Finally, multi-stage emission control systems capture fly ash and particulate matter, with some installations incorporating selective non-catalytic reduction for NOx control, ensuring environmental compliance.

Part 3: ZOZEN's Wood Pellets Boiler Product Portfolio

SZL series biomass-fired steam boiler

The SZL series represents the pinnacle of chain-grate biomass boiler technology, featuring a horizontal double-drum layout designed for 6-35 t/h steam capacity and working pressures from 1 to 2.5 MPa. The boiler employs a membrane water-cooled wall construction forming the combustion chamber's radiation heat absorption surface, while compatible with biomass molding granules, wood chips, saw dust, palm shells, and rice husk. The chain grate system with independent air chambers ensures thorough fuel combustion, while the fuel stirrer delivers materials evenly to prevent backfire. With automated fuel supply, ash removal, and slag discharge, the SZL series achieves thermal efficiency exceeding 86% for larger capacities.

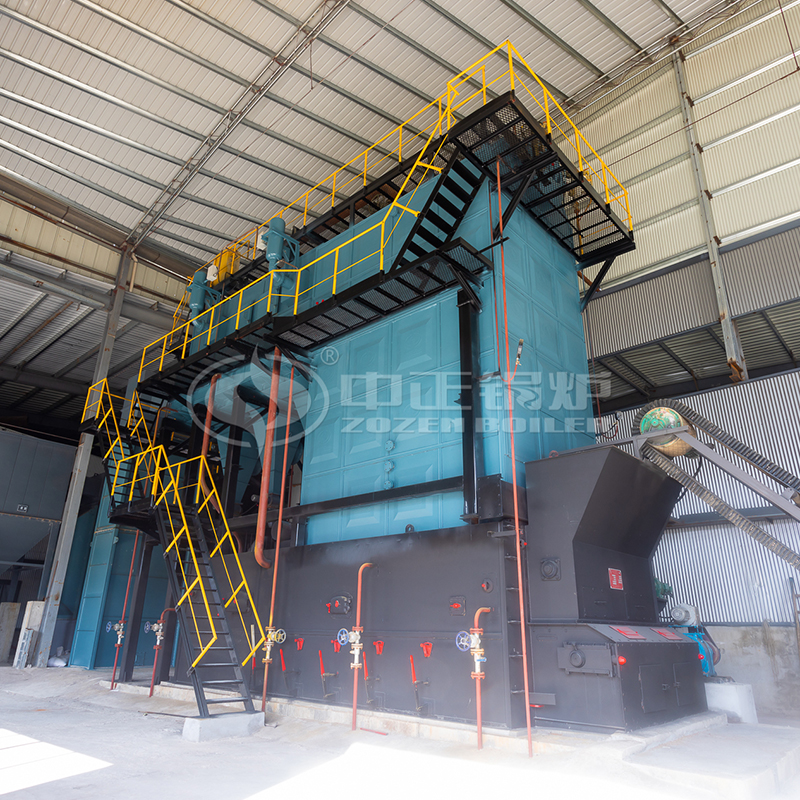

DZL series biomass-fired horizontal type steam boiler

For large-capacity applications requiring stable combustion of non-formed biomass fuels, ZOZEN offers the DZL series horizontal type three-drum water tube boiler. This third-generation biomass boiler, independently developed by ZOZEN with independent intellectual property rights, covers a thermal capacity of 10 to 40 tons per hour, with working pressures of 1.25 MPa, 1.6 MPa, or 2.5 MPa and steam temperatures of 194°C, 204°C, or 225°C accordingly. The boiler adopts an assembly structure consisting of two large components for easier transport and installation. The furnace height is increased by 1 to 3 meters specifically to meet the combustion requirements of non-formed biomass fuels such as loose wood chips, rice husks, and palm shells. The chain grate is equipped with high-temperature resistant grate bars and a separate air chamber to ensure thorough fuel combustion, while an ash-blowing device is installed on the tail convection surface, enabling online ash removal without shutting down the boiler. The full-seal membrane water-cooled wall surrounds the combustion and cooling chambers, and the front-back arch furnace design with ignition and flame-leading arches further improves combustion stability. The DZL series achieves a thermal efficiency of over 88%, making it a highly efficient and reliable choice for heating, chemical, food, tobacco, textile, printing and dyeing, feed, pharmaceutical, building materials, brewing, rubber, and hospital applications.

Wood pellets boiler

DZW series biomass-fired reciprocating grate steam boiler

The DZW series third-generation biomass boiler is a water tube boiler composed of three drums, independently developed by ZOZEN for 15-35 t/h steam capacity with working pressures of 1.25 MPa, 1.6 MPa, or 2.5 MPa. The boiler adopts an assembly structure consisting of two large components: the upper large part is the heating surface of the main body, and the lower large part is the combustion equipment. Tall furnace design increases furnace height by 1-3 meters to meet non-formed biomass fuel combustion requirements. The DZW series configures reciprocating grates to handle high-moisture fuels, with an ash-blowing device on the tail convection surface enabling ash removal without shutdown, achieving thermal efficiency greater than 86.7%.

DHL series biomass-fired steam boiler

The DHL series corner tube boiler is designed for 20-75 t/h with working pressures ranging from 1.25 to 5.4 MPa and outlet temperatures from 184 to 485℃. This compact and efficient boiler utilizes a pipe system as its skeleton, featuring a fully enclosed membrane wall structure and flag tube design for the convective heating surface. The DHL series employs a novel self-developed, forward-rotating, single-frame chain grate that achieves lower slag carbon and higher capacity boiler performance. With forced-natural combo water circulation and variable cross-section, equal smoke speed design, the DHL series achieves thermal efficiency exceeding 86.8%, representing ZOZEN's most robust solution for large-scale biomass steam generation.

Part 4: Application Scenarios and Overseas Case Studies

A wood pellets boiler serves a wide range of industrial sectors, each with unique steam or hot water requirements that make biomass an ideal fuel choice.

In the food processing industry, steam is essential for cooking, sterilization, drying, and baking operations. Many food plants require consistent, high-quality steam to maintain product safety and production efficiency. A wood pellets boiler provides stable steam output while significantly reducing fuel costs compared to natural gas or diesel, making it particularly attractive for bakeries, dairy processing plants, and fruit drying facilities .

The textile and printing & dyeing industry relies heavily on steam for dyeing, drying, heat setting, and finishing processes. Textile mills typically operate continuously, requiring boilers that can run for extended periods without interruption. A wood pellets boiler with automatic ash removal and feeding systems meets this demand while helping textile plants reduce their carbon footprint and comply with increasingly strict environmental regulations .

In the chemical and pharmaceutical industry, steam is used for reactor heating, distillation, sterilization, and material drying. These applications demand precise temperature and pressure control. Modern wood pellets boiler systems, equipped with PLC-based automatic controls, can deliver the accuracy and reliability required for sensitive chemical processes while lowering operating costs through the use of renewable biomass fuel.

A compelling case comes from H&Y Wood Company, a paper-making enterprise in Côte d'Ivoire. After multiple market surveys, the company selected ZOZEN's DZL series biomass boiler as its primary energy source, using wood chips as main fuel. During installation, H&Y Wood Company encountered operational challenges. ZOZEN's after-sales personnel gave patient guidance and detailed operation instructions, ensuring safe and stable boiler operation. The professionalism earned high praise, illustrating ZOZEN's commitment to delivering not only quality equipment but also comprehensive technical support.

Part 5: Comprehensive Value and Future Outlook

The value of wood pellets boilers extends across environmental, economic, and technical dimensions. Environmentally, they enable industries to decarbonize heat generation using waste biomass. Economically, wood pellets often cost 40-60% less than fossil fuel equivalents, with payback periods of 3-5 years. Technically, ZOZEN distinguishes itself through relentless innovation—optimized grate air distribution, membrane water-cooled walls resisting corrosion, and intelligent control systems enabling unattended operation.

As industries worldwide embrace sustainable heating solutions, ZOZEN Boiler stands ready with advanced wood pellets boiler technology that delivers environmental stewardship without compromising performance or economics. The transition to biomass-based industrial heating is a strategic opportunity to build resilient, future-proof operations.
