Part 1: What Is a Fluidized Bed Coal Fired Boiler?

A fluidized bed coal fired boiler is a combustion system where coal particles are suspended and "fluidized" by upward-blowing air, creating a turbulent, bubbling bed that behaves like a boiling liquid. The working principle differs fundamentally from conventional coal combustion.

In a fluidized bed coal fired boiler, primary air is blown through bell-shaped wind caps at the furnace bottom, lifting coal particles and bed material—such as sand or limestone—into a suspended state. Coal burns in this fluidized suspension at temperatures of 850–900°C, significantly lower than the 1,300–1,600°C typical of pulverized coal boilers. This lower temperature range is the defining characteristic that enables the fluidized bed coal fired boiler’s superior environmental performance.

Compared with chain grate boilers, where coal burns in a static layer on a moving grate, and pulverized coal boilers, where finely ground coal dust is injected and burned in suspension, the fluidized bed coal fired boiler offers distinct advantages: it can burn lower-grade fuels, achieve in-furnace desulfurization, and produce minimal nitrogen oxides without post-combustion treatment equipment. The fluidized bed coal fired boiler is particularly suited for projects that require the use of low-calorific coals, coal gangue, or fuel blends incorporating biomass and sludge.

Part 2: Key Advantages of Fluidized Bed Coal Fired Boiler

The widespread adoption of the fluidized bed coal fired boiler is driven by four compelling advantages that address both operational and environmental concerns.

Exceptional Fuel Flexibility

A fluidized bed coal fired boiler is compatible with a broad spectrum of solid fuels. These boilers burn coal, rock refuse, biomass, and sludge—often within the same combustion chamber. This wide fuel compatibility allows plants to adapt fuel procurement to market conditions, switching between available fuel sources without compromising boiler performance.

Superior Environmental Performance

Low-temperature combustion in a fluidized bed coal fired boiler suppresses thermal NOx formation, keeping NOx emissions below 100 mg/Nm³ without the need for selective catalytic reduction or other post-combustion denitrification systems. By feeding limestone directly into the bed, the fluidized bed coal fired boiler captures SO₂ during combustion, achieving desulfurization efficiency of 85–90% without a separate flue gas desulfurization unit. This in-furnace approach to pollutant control delivers both capital savings and operational simplicity.

High Combustion Efficiency

The intense turbulent mixing within the fluidized bed ensures rapid and uniform heat transfer, promoting complete fuel burnout even with low-grade feedstocks. This efficiency is maintained across a wide operating range, with stable performance achievable at loads as low as approximately 30% of rated capacity.

Reusable Ash

Ash produced by a fluidized bed coal fired boiler is chemically active and suitable for a range of downstream applications, including cement production, construction materials, and soil amendment. By transforming a potential waste stream into a usable resource, the fluidized bed coal fired boiler eliminates secondary pollution concerns and can generate supplementary revenue for plant operators.

Part 3: Main Types of Fluidized Bed Coal Fired Boiler – ZOZEN Product Line

ZOZEN offers three distinct series of fluidized bed coal fired boiler, each engineered for specific capacity ranges and application scenarios.

DHX Coal-Fired CFB Steam Boiler

The DHX series is ZOZEN’s medium-to-large capacity fluidized bed coal fired boiler, designed for industrial steam generation across sectors including chemical, food, textile, and building materials. The series delivers a thermal capacity of 20 to 75 t/h, with working pressures ranging from 1.25 to 1.6 MPa and steam temperatures from 194°C to 400°C. Thermal efficiency is rated at 88%. Key structural features of the DHX fluidized bed coal fired boiler include a high-temperature cyclone separator, which captures unburned particles and returns them to the furnace for re-combustion. A large furnace design reduces flue gas velocity, minimizing erosion on heating surfaces and extending service life. Bell-shaped wind caps ensure uniform air distribution across the bed and prevent material backflow into the wind chamber. The ignition system offers both bed-top and bed-bottom ignition options, providing operational flexibility. Thermal performance is further enhanced by a serpentine tube economizer and an air preheater, which maximize heat recovery from flue gases.

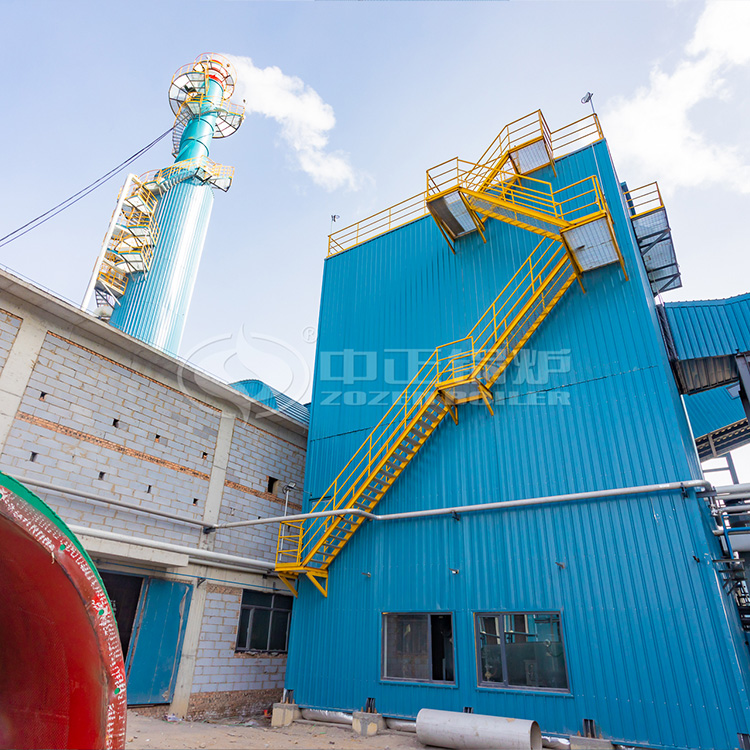

Fluidized bed coal fired boiler: DHX CFB Steam Boiler

SHX Coal-Fired CFB Steam Boiler

The SHX series is ZOZEN’s compact-capacity fluidized bed coal fired boiler, optimized for smaller industrial steam demands. It offers a thermal capacity of 10 to 35 t/h, with working pressures of 1.25 to 2.5 MPa and steam temperatures from 194°C to 400°C, also achieving 88% thermal efficiency. The SHX series shares the high-temperature cyclone separator, large furnace design, and bell-shaped wind cap with the DHX series. Its distinguishing feature is a convection heating surface fitted with multiple smoke baffles, which prevents fly ash buildup on tube banks and maintains heat transfer efficiency over time. Strategically placed soot blower ports enable effective cleaning without boiler shutdown. Like the DHX, the SHX incorporates a serpentine tube economizer and air preheater, along with dual ignition options for startup flexibility.

QXX Coal-Fired CFB Hot Water Boiler

The QXX series adapts the fluidized bed coal fired boiler concept for hot water generation, primarily serving district heating applications. Available from 14 to 58 MW with working pressures of 1.0 to 1.25 MPa, it delivers supply/return water temperatures of 95/70°C or 115/70°C, with 88% thermal efficiency. The QXX fluidized bed coal fired boiler shares the high-temperature cyclone separator, large furnace design, and bell-shaped wind cap with the steam boiler series. It is equipped with a serpentine tube economizer and air preheater for efficiency optimization, and features a U-shaped return pipe and valve designed to prevent blockage or air disturbance during particle circulation. The compact and robust construction of the QXX series ensures reliable operation at part-load conditions down to approximately 30% of rated capacity—well-suited to the variable demand profiles typical of district heating systems.

Part 4: Conclusion – Core Value and the ZOZEN Difference

The fluidized bed coal fired boiler answers a fundamental question that no conventional boiler technology can: how to generate reliable thermal energy from low-grade, low-cost fuels while meeting modern environmental standards. Its core value—high fuel adaptability, direct desulfurization, low NOx emissions, and high thermal efficiency makes it the definitive choice for projects involving inferior coal, coal gangue, biomass co-firing, and sludge utilization. Where conventional systems require expensive fuel preprocessing or external emission control chains, the fluidized bed coal fired boiler delivers compliance as a built-in feature.

What distinguishes ZOZEN’s fluidized bed coal fired boiler range is not merely the breadth of its product line, but a systems-thinking approach that treats the boiler as part of an integrated thermal solution. Since its founding in 1988, ZOZEN has accumulated three decades of experience in industrial boiler manufacturing, earning ISO9001:2015 certification, PRC Grade A Manufacture License, and ASME “S” and “U” stamps. Every fluidized bed coal fired boiler that leaves ZOZEN’s facility carries these quality credentials as a baseline, not a selling point.

The real differentiator lies in how ZOZEN applies this experience. Each fluidized bed coal fired boiler installation comes with customized solutions for fuel feed systems, slag and ash handling, and flue gas treatment—tailored to the specific fuel mix and operating conditions of the end user. Advanced automated controls handle fuel supply, ash removal, and slag discharge, reducing the operator’s manual workload and improving consistency. A 12-month free maintenance guarantee, round-the-clock online support, and 365-day service availability complete a package that transforms the fluidized bed coal fired boiler from a standalone combustion device into a managed, long-term thermal energy partnership.

In an energy landscape defined by fuel price volatility, tightening emission regulations, and the growing need to utilize waste-derived fuels, ZOZEN’s fluidized bed coal fired boiler product line offers a clear, proven, and commercially sound path forward.
