Thermal oil heaters
  • Product Name:

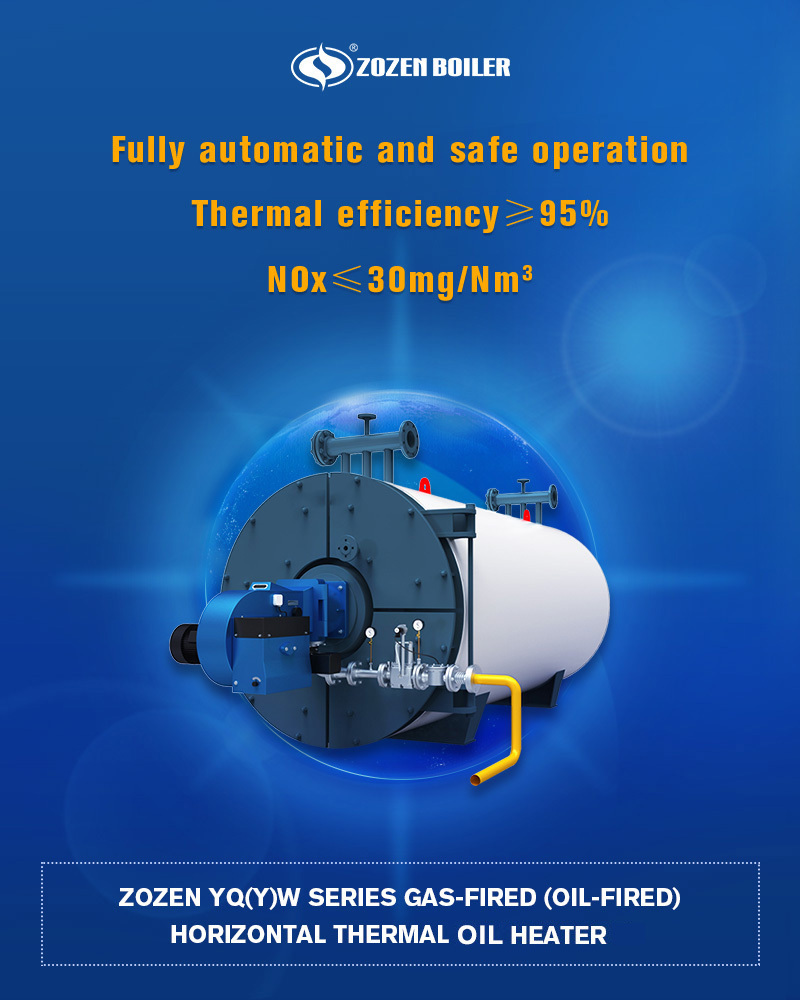

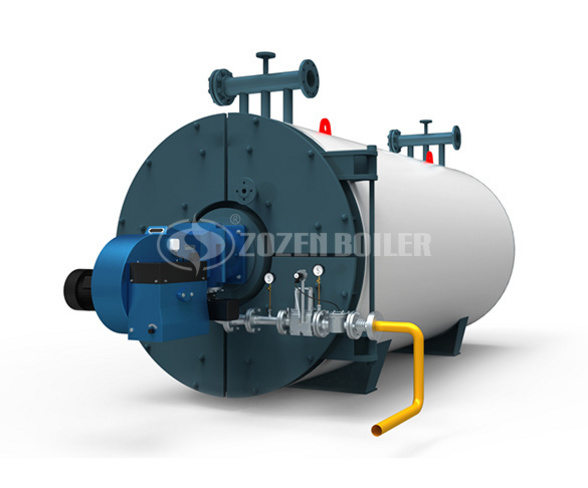

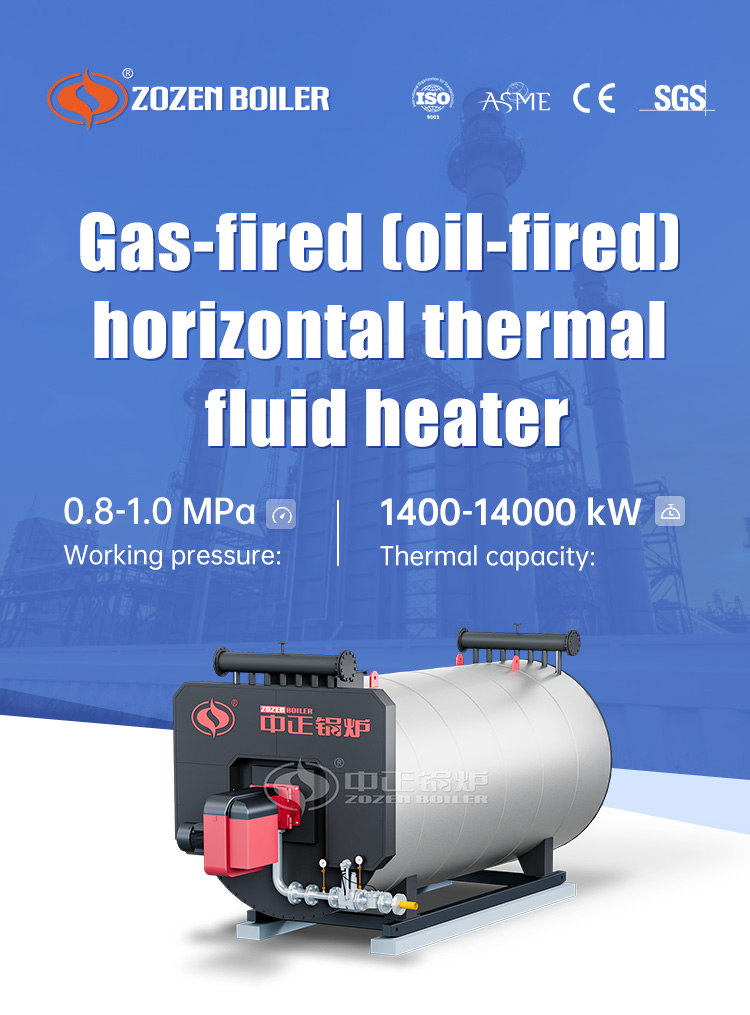

    YQ(Y)W Series Industrial Gas / Oil Fired Horizontal Thermal Fluid Heater

  • Contact Us  Contact Us:
  • sales@zozen.com

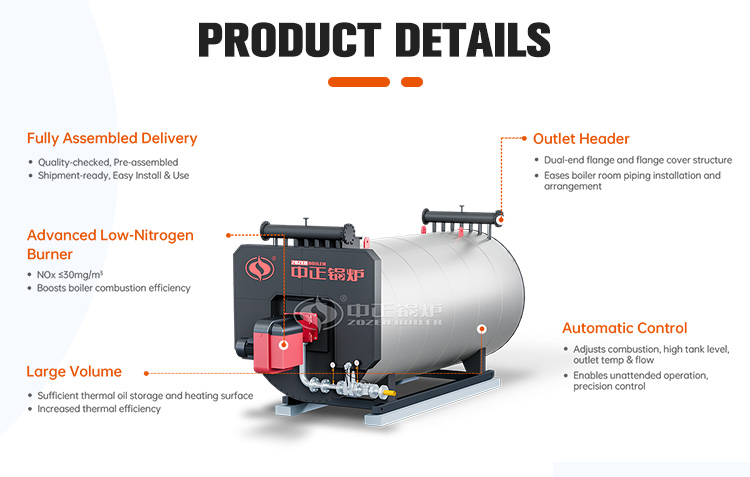

Technical Advantages

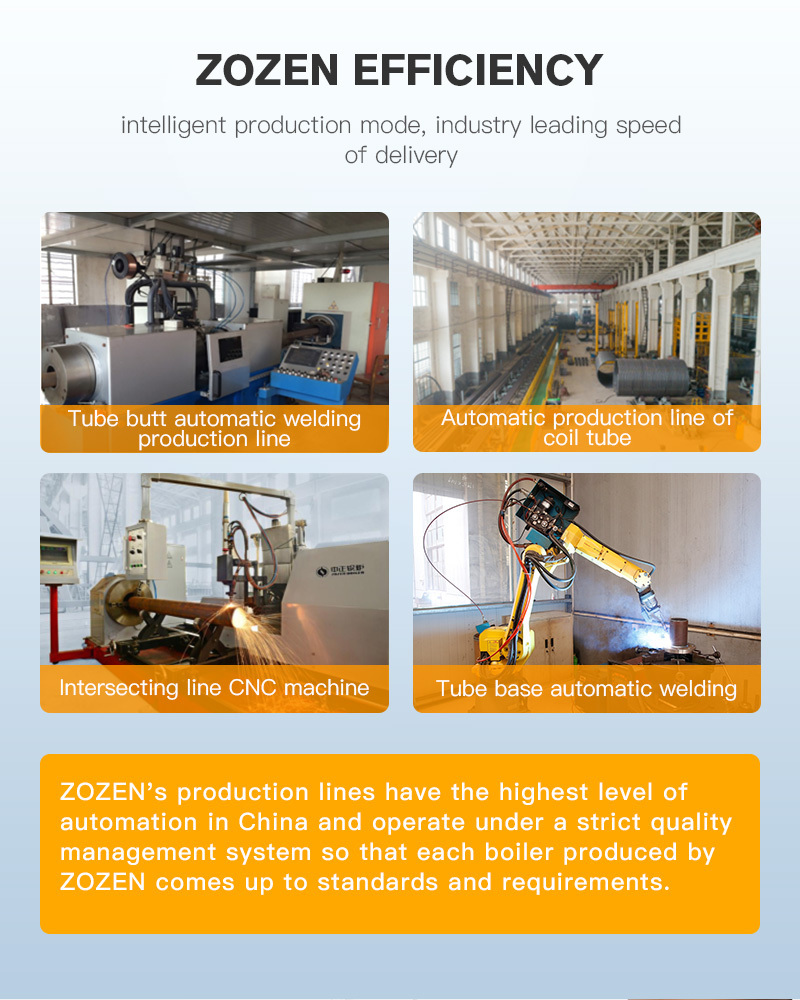

New Digital Manufacturing Process

The cutting of steel pipe is made by nc 3d laser cutting machine.The manufacture of disc tube adopts nc coil automatic production line to achieve the effect of forming.

Argon Arc Welding

Argon arc welding technology is adopted for tube butt joint, and real-time X-ray imaging of welding seam is carried out to strictly ensure product quality.

Low Cost

Good heat preservation material is used inside the boiler and stainless steel plate is used on the outer side to minimize heat loss and improve the working environment.

Simply Operation

The heater is assembled before leaving factory, easy to install, debug and operate.
Automatic operation, combustion, high level water tank liquid level, outlet temperature, flow automatic regulation, self-protection.








Boiler specification


ModelRated thermal power    (KW)Rated thermal power    (x104kcal/h)Design working temperature(≤℃)Rated working pressure(MPa)Thermal efficiency (≥%)System installation power(KW)Maximum transport size(m)
(L×W×H)
YQW-700Q700603200.895183.6×1.7×2.1
YQW-1000Q1000803200.895183.8×1.7×2.1
YQW-1200 Y(Q)12001003200.895353.8×2.0×2.4
YQW-1400 Y(Q)14001203200.895354.3×2.0×2.6
YQW-1800 Y(Q)18001603200.895564.9×2.2×2.6
YQW-2400 Y(Q)24002003200.895565.3×2.5×3.0
YQW-2800 Y(Q)28002403200.895666.1×2.5×3.0
YQW-3500 Y(Q)35003003200.895756.7×2.6×3.0
YQW-4200Q42003603200.895956.9×2.7×3.2
YQW-4600Q46004003200.895957.0×2.9×3.4
YQW-6000Q60005003200.8951407.2×3.3×3.9
YQW-7000Q70006003200.8951408.0×3.6×4.0
YQW-8200Q82007003200.8951408.5×3.7×4.0
YQW-9400Q94008003201952009.5×3.8×4.0
YQW-10500Q1050090032019520010.5×3.8×4.0
YQW-12000Q12000100032019524012.4×3.8×4.0
YQW-14000Q14000120032019530013.5.×4.0×4.2
